Sphenodon punctatus, Tuatara
Dr. Jessie Maisano - The University of Texas at Austin
Sphenodon punctatus
Click for help

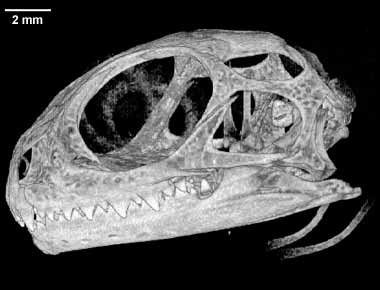

skull
Click for more information

Carnegie Museum of Natural History (CM 30660)

Image processing: Dr. Ted Macrini
Publication Date: 28 Jun 2001

Growth series: adult | juvenile

ITIS TNS Google MSN

Sphenodon species, also known as tuataras, are the sole living representatives of Rhynchocephalia, the sister taxon to Squamata (the clade that includes lizards, snakes, and amphisbaenians; e.g., Ctenosaura pectinata, Gerrhosaurus major, Rhineura sp., and Varanus gouldii). By necessity, Sphenodon is usually used to represent the first outgroup to Squamata in phylogenetic analyses. However, there is a large gap in the fossil record of rhynchocephalians, from the early Cretaceous up to a subfossil, S. diversum. Extant Sphenodon is highly derived, and this limits its utility for polarizing characters in the evolution of squamates.

Sphenodon

There are two living species of tuataras, Sphenodon guntheri and S. punctatus. Collectively, they are restricted in their distribution to 30 islands surrounding New Zealand, but S. punctatus is known from Holocene deposits all over New Zealand. It is thought that the arrival of Polynesians roughly 1000 years ago, and of Europeans over the last several centuries, is responsible for the tuatara's disappearance from the mainland. This is because settlers brought rats and dogs, which prey on tuataras, and cattle, which trample them. Sphenodon has been unable to rebound from the impact of humans because of its incredibly limited reproductive potential. Tuataras do not reproduce until they are 12-15 years old, and even then, they reproduce only once every four years. It is estimated that only 55,000 tuataras remain today (Mlot, 1997), despite the fact that Sphenodon was the first reptile in the world to be protected (since 1895, by New Zealand law).

The tuatara, although superficially resembling a lizard, lacks the external tympanum, femoral pores, and paired evertible hemipenes that lizards possess. Cranial features diagnostic of rhynchocephalians include an enlarged tooth row along the maxillary side of the palatine and the loss of the splenial (Gauthier et al., 1988). Both are discernible in the animations above.

About the Species

This hatchling S. punctatus from the Carnegie Museum of Natural History (CM 30660) was made available for scanning by Dr. John Wiens of that institution. The specimen was scanned for Dr. Chris Bell of The University of Texas at Austin.

About this Specimen

The hatchling was scanned by Richard Ketcham on 03 August 1999 along the coronal axis for a total of 294 slices, each slice 0.058 mm thick, with an interslice spacing of 0.058 mm. The dataset displayed was reduced for optimal Web delivery from the original, much higher resolution CT data.

About the
Scan

Literature

Christensen, K. 1927. The morphology of the brain of Sphenodon. University of Iowa Studies in Natural History 12:1-29.

Cree, A., and C. H. Daugherty. 1990. Tuatara sheds its fossil image. New Scientist 1739:30-34.

Dendy, A. 1899. Outlines of the development of the Tuatara, Sphenodon (Hatteria) punctatus. Quarterly Journal of Microscopical Science 42:111-152.

Gauthier, J., Estes, R., and K. de Queiroz. 1988. A phylogenetic analysis of Lepidosauromorpha; pp. 15-98 in R. Estes, and G. Pregill (eds.), Phylogenetic Relationships of the Lizard Families. Stanford University Press, Stanford, California.

Howes, G. B., and H. H. Swinnerton. 1901. On the development of the skeleton of the Tuatara Sphenodon punctatus, with remarks on the egg, on the hatchling, and on the hatched young. Transactions of the Zoological Society of London 16:1-86.

Mlot, C. 1997. Return of the tuatara. Science News 152:300-301.

Osawa, F. 1898. Beiträge zur Anatomie der Hatteria punctata. Archiv für Mikroskopische Anatomie und Entwicklungsgeschichte 51:481-691.

Pratt, C. W. M. 1948. The morphology of the ethmoid region in Sphenodon and lizards. Proceedings of the Zoological Society of London 118:171-201.

Links

Sphenodon punctatus on The Animal Diversity Web (The University of Michigan Museum of Zoology)

Tuatara page of the New Zealand Department of Conservation

Literature
& Links

None available.

Additional
Imagery

To cite this page: Dr. Jessie Maisano, 2001, "Sphenodon punctatus" (On-line), Digital Morphology. Accessed October 22, 2014 at http://digimorph.org/specimens/Sphenodon_punctatus/juvenile/.
